Choosing between a panel bender and a press brake is not simply a question of which machine is newer, faster or more automated.

The two technologies form sheet metal in fundamentally different ways.

A press brake typically positions the workpiece against a backgauge and forces the sheet between a punch and die. Its flexibility comes largely from interchangeable tooling, controlled axes, CNC programming and—when required—robotic automation.

A panel bender normally clamps the sheet and uses controlled bending blades to form the edges while a manipulator automatically positions or rotates the workpiece. Its flexibility comes more from integrated handling, universal or automatically configured tooling and software-driven part manipulation.

These differences affect:

· material thickness;

· bend length;

· flange height;

· minimum flange;

· part geometry;

· setup time;

· tooling requirements;

· operator involvement;

· automation;

· total cycle time;

· and ultimately the economics of the production process.



For this reason, the correct question is not:

Is a panel bender better than a press brake?

A more useful question is:

Which bending architecture is better matched to the parts, production mix, automation strategy and lifecycle economics of the factory?

This guide explains the differences from an engineering and production perspective.





Panel Bender vs Press Brake: Quick Comparison





This table should be treated as a starting point.

Neither machine category has a universal advantage in every row.





How Does a Press Brake Work?



Air Bending Principle



In a typical CNC press brake, the workpiece is positioned against the backgauge and the ram moves the punch toward the lower die.

In air bending, the sheet normally contacts:

· the punch tip;

· the left die shoulder;

· and the right die shoulder.



The punch does not need to force the sheet completely into the bottom of the die.

The final bend angle depends mainly on:

· punch penetration;

· V-die opening;

· material thickness;

· tensile strength;

· inside radius;

· and material springback.



This gives a press brake a major practical advantage:

One punch-and-die combination can often produce several bend angles by changing ram penetration.

The machine therefore combines mechanical tooling with programmable ram position.





Punches, Dies and Backgauges



A press brake usually relies on three basic systems.



1. Punch and Die



The tooling determines much of the process envelope.

Different tooling can be selected for:

· acute bends;

· 90° bends;

· large-radius bends;

· short flanges;

· deep boxes;

· U-shapes;

· hemming;

· special profiles;

· and surface-sensitive components.

This is why tooling must be selected as part of the machine—not as an accessory after the machine order.



2. Backgauge



The backgauge positions the flange dimension.

Depending on the application, it may include:

· X;

· R;

· Z1/Z2;

· X1/X2;

· R1/R2;

· or other controlled movements.

A simple bracket may require only X positioning.

An asymmetrical enclosure may require several independent backgauge movements.



3. Ram and Crowning System



On modern synchronized machines, the ram is often controlled through Y1 and Y2.

Long-part accuracy can also require:

· CNC crowning;

· hydraulic compensation;

· angle measurement;

· or adaptive correction.

The accuracy of a finished part therefore cannot be predicted from controller resolution alone.





Where Press Brake Flexibility Comes From



The defining advantage of a press brake is tooling freedom.

A press brake can use:

· straight punches;

· gooseneck punches;

· acute punches;

· radius punches;

· hemming tools;

· multi-V dies;

· single-V dies;

· special forming tools;

· and custom tooling.

This allows one machine to process a very broad range of part geometries.

TRUMPF, for example, publishes dedicated tooling for radius forming, sensor-based angle measurement, foil-coated material and custom applications. It also offers tooling solutions intended to reduce surface marking on sensitive or coated sheet.

Therefore:

Press brake flexibility is largely tooling-based.

This becomes important later when comparing it with a panel bender.





How Does a Panel Bender Work?



A panel bender uses a different forming architecture.

Instead of repeatedly placing a flange against a backgauge and pushing a punch into a V-die, the machine normally:

1. references the blank;

2. clamps the workpiece;

3. positions it with a manipulator;

4. uses upper and/or lower bending blades to form the edge;

5. automatically rotates or repositions the blank;

6. continues bending additional sides.

Modern machines may combine:

· blankholder;

· upper bending blade;

· lower bending blade;

· counterblade;

· manipulator;

· automatic tool setup;

· auxiliary tools;

· loading/unloading automation;

· and offline programming.

Salvagnini’s P4, for example, uses universal bending tools that automatically adapt in-cycle to panel geometry, reducing manual retooling and supporting batch-one or kit production.





Blankholder and Bending Blades



The blankholder performs a different function from a press brake punch.

It secures the sheet while the bending blades move around the clamped edge to form positive or negative bends.

This means the panel bender can produce several bends around a panel without requiring the operator to manually remove, flip, rotate and reposition the part after every bend.

The result is not merely a faster bending stroke.

The larger productivity effect often comes from reducing handling time between bends.





Automatic Positioning and Part Rotation



Panel benders commonly use an integrated manipulator to reposition the workpiece.

TRUMPF’s panel bending systems, for example, use rotary part manipulation for automatic positioning, and current Series 7000 machines support automatic handling of complex bends, including negative bends with suitable configuration.

This changes the production workflow significantly.

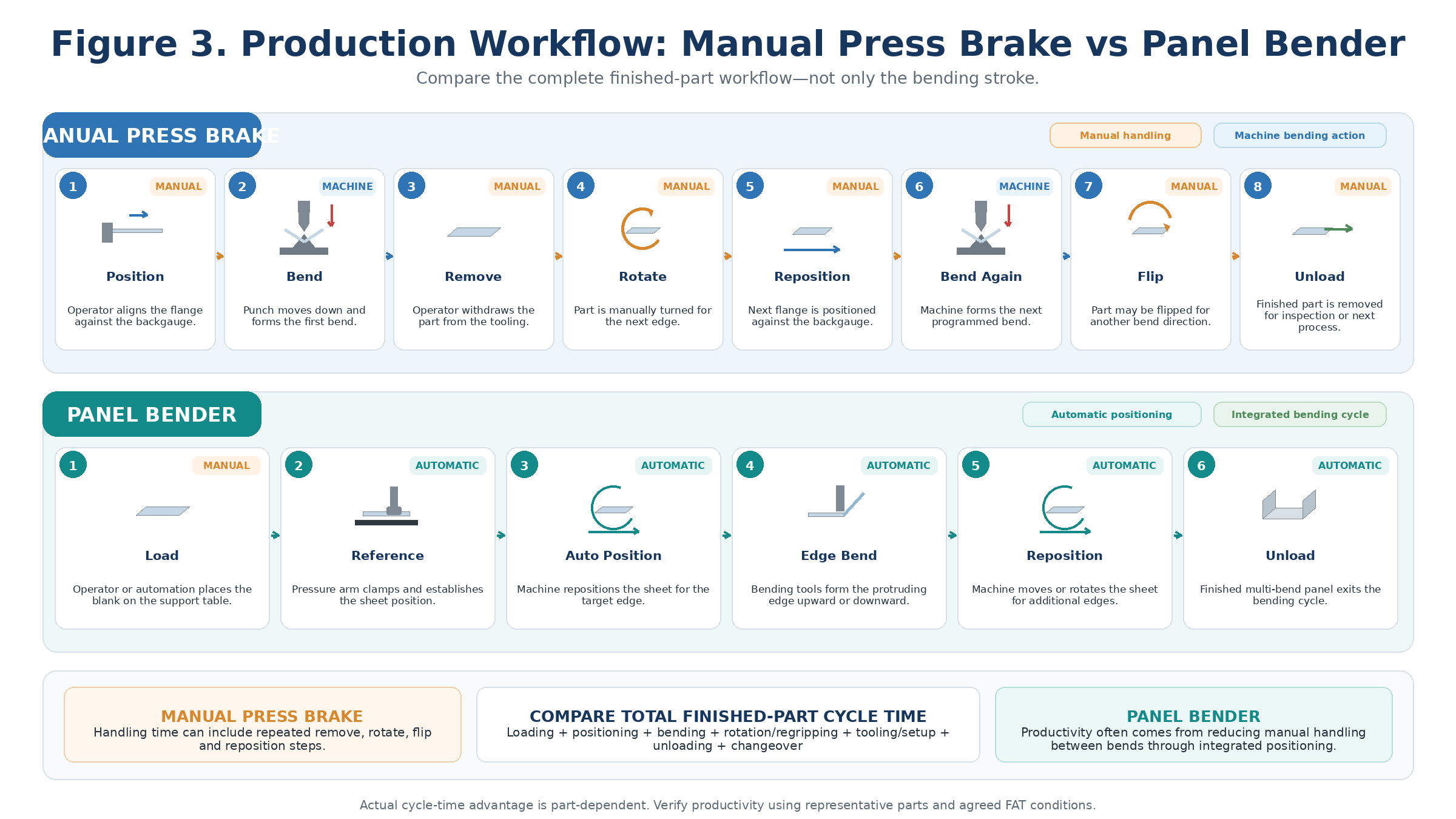

A manual press brake cycle may look like:

Position → Bend → Remove → Rotate → Reposition → Bend → Flip → Reposition → Bend

A panel-bender cycle is more likely to look like:

Load → Reference → Clamp → Automatic position/rotate → Bend → Rotate → Bend → Continue → Unload

This is why comparing only the number of seconds per bend can be misleading.





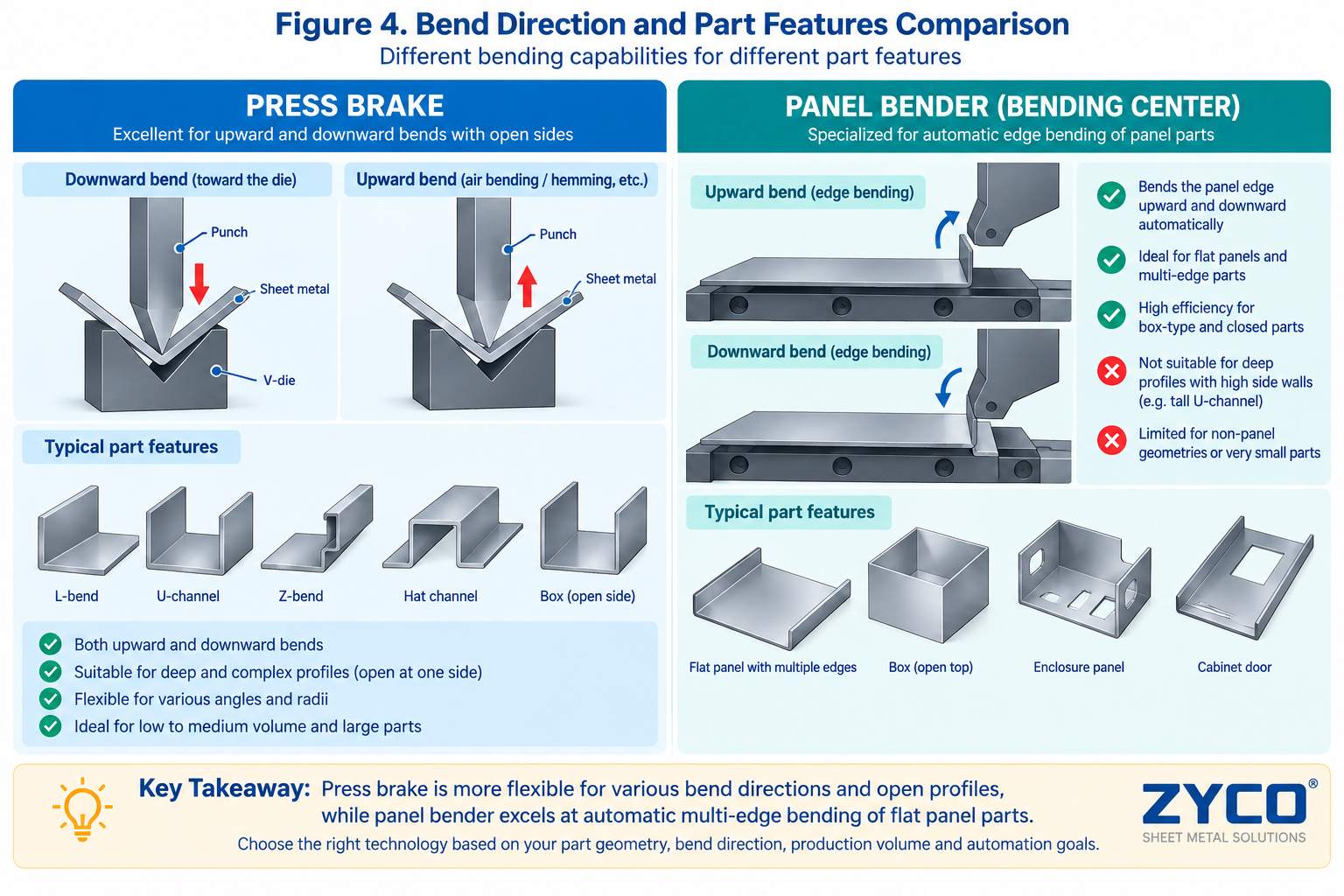

Positive and Negative Bending



Modern panel benders can often bend both upward and downward without requiring the operator to turn the workpiece over manually.

That can be particularly valuable for:

· electrical cabinets;

· appliance panels;

· elevator panels;

· HVAC panels;

· trays;

· enclosures;

· facade elements;

· and similar multi-sided components.



However, the ability to produce a part still depends on:

· bend height;

· return flanges;

· re-entrant geometry;

· blank size;

· part diagonal;

· clamping;

· collision clearance;

· and auxiliary tools.



A panel bender should therefore always be evaluated through a part-feasibility study.





Where Panel Bender Productivity Comes From



The key advantage is not simply blade speed.

Panel-bender productivity comes from a combination of:

· integrated positioning;

· automatic rotation;

· reduced manual handling;

· reduced manual retooling;

· automatic positive/negative bending;

· software-generated sequences;

· and repeatable part referencing.



Therefore:

Panel bender flexibility is largely automation- and universal-tool-based.

This contrasts directly with press brake flexibility, which is more strongly associated with interchangeable tooling.

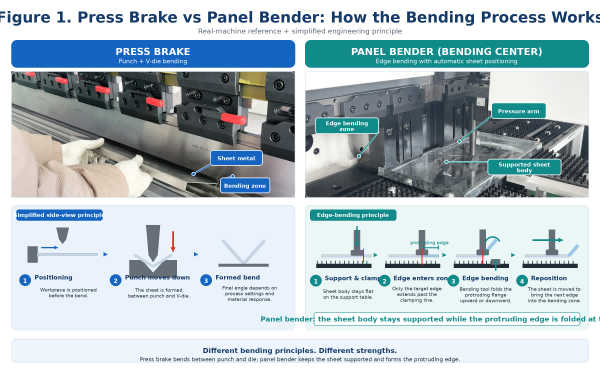

Figure 1. Fundamental forming principle: punch + V-die bending versus clamped sheet + controlled bending blades.



Panel Bender vs Press Brake: 12 Key Differences



1. Bending Principle



A press brake creates the bend through punch-and-die interaction.

A panel bender clamps the sheet and forms the flange using controlled blade movement.

This difference influences almost every other comparison:

· tooling;

· geometry;

· thickness range;

· handling;

· programming;

· and automation.

Neither principle is universally superior.





2. Material Thickness



Press brakes generally provide a much wider thickness and force range.

Large hydraulic press brakes can be configured for:

· thin sheet;

· medium plate;

· thick plate;

· high-strength steel;

· large radii;

· and high-tonnage applications.

Panel benders are typically optimized for sheet-metal panel work, but their actual thickness capacity varies substantially between machine models.

For example, Salvagnini currently publishes P4 configurations capable of processing steel around the 3.2 mm class at specified material strength and angle conditions, while stainless and aluminium limits differ.

Prima Power’s BCe data similarly shows model-dependent capacities of approximately:

· 3.0–3.2 mm steel at 410 N/mm² UTS;

· 2.0–2.2 mm stainless steel;

· 4.0 mm aluminium.



ZYCO’s current C-series published specifications are more conservative, with model-dependent values around:

· 1.5 mm cold plate;

· 0.8–1.5 mm stainless steel;

· 2–3 mm aluminium.



These examples demonstrate why there is no useful universal statement such as:

"A panel bender can bend 3 mm steel."

A proper specification must include:

· machine model;

· material;

· tensile strength;

· bend length;

· angle;

· and geometry.





3. Part Size and Machine Envelope



Press brakes are available across an extremely broad range of working lengths and tonnages.

Manufacturers such as LVD publish standard, robotic and XXL press brake platforms, including solutions for large and heavy parts.

Panel benders have a more defined part envelope.

The buyer must check:

· maximum blank length;

· maximum blank width;

· maximum bend length;

· maximum rotatable diagonal;

· minimum part dimensions;

· part weight;

· and manipulator limitations.



Prima Power’s BCe, for example, publishes specific values for maximum bending length, sheet dimensions and diagonal.

A panel may fit within nominal sheet dimensions but still fail because its diagonal cannot rotate inside the machine.





4. Flange Height and Bend Height



This is one of the most frequently overlooked panel-bender specifications.

A press brake buyer normally focuses on:

· daylight;

· stroke;

· throat depth;

· tooling height;

· and interference.



A panel-bender buyer must pay particular attention to:

maximum bend height

For example, current P4 configurations publish bend-height limits in the approximately 200–260 mm range for several standard models, while Prima Power BCe configurations publish approximately 204 or 264 mm depending on version.

TRUMPF’s current Series 7000 information shows that larger bend heights are possible on some systems, again demonstrating that this is highly model-dependent.

Therefore:

Thickness and sheet size alone do not determine panel-bender feasibility.

The part may fail because of a high flange or deep-box geometry.





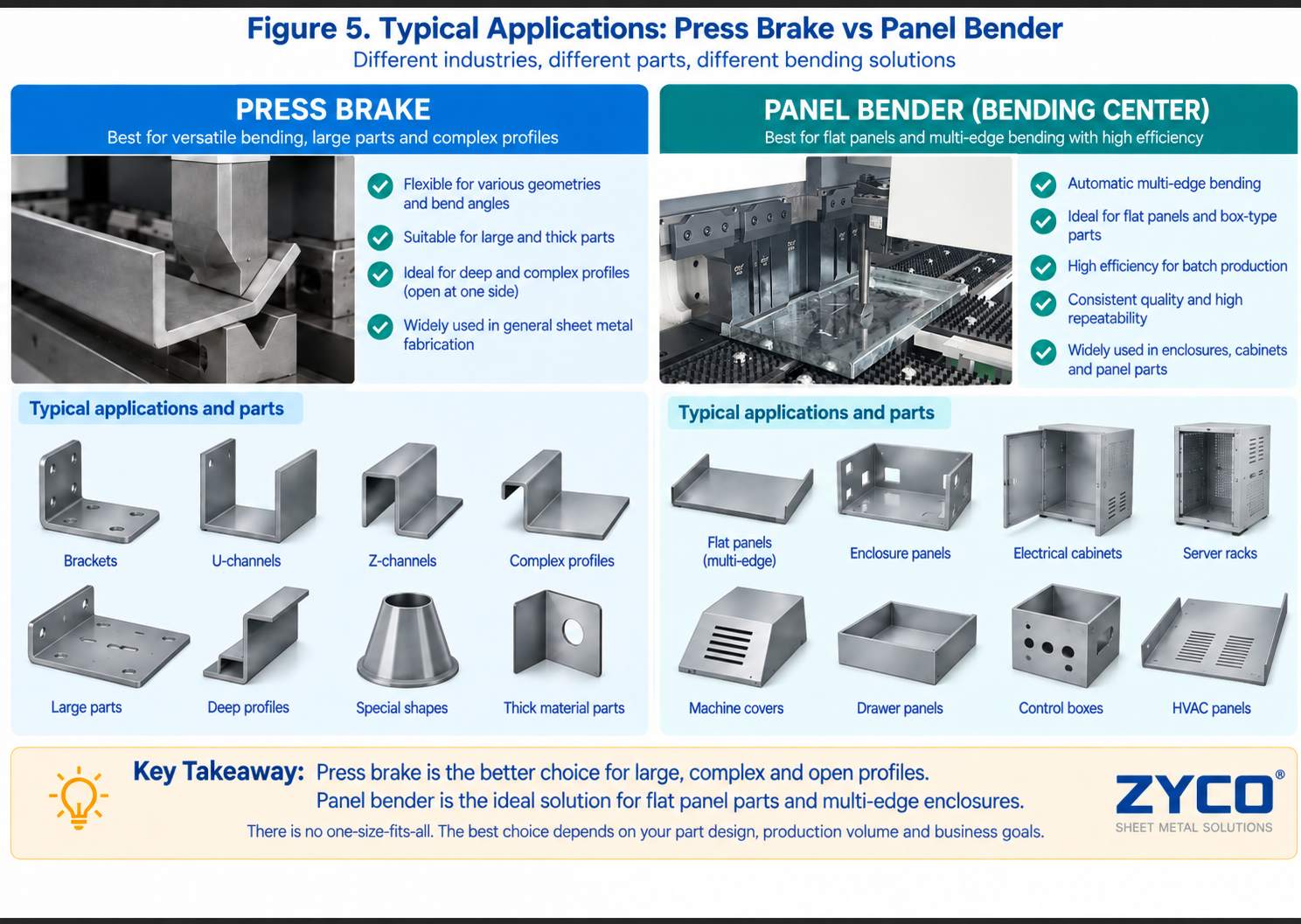

5. Part Geometry



Press Brake Strengths



Press brakes are especially strong when production includes:

· irregular components;

· structural brackets;

· thick plate;

· long profiles;

· small custom parts;

· special radii;

· deep boxes requiring gooseneck tooling;

· hems;

· unusual forming sequences;

· and jobs requiring dedicated tools.



Panel Bender Strengths



Panel benders are especially strong when the part family consists of:

· multi-sided panels;

· doors;

· electrical enclosures;

· cabinets;

· trays;

· appliance panels;

· elevator panels;

· HVAC components;

· and other sheet-metal parts that benefit from repeated edge bending and automatic rotation.



The important word is part family.

One individual component may be technically possible on both machines, but the economics may differ completely across a production family.





6. Tooling Philosophy



Press Brake



Tool changes are a normal part of production flexibility.

Different jobs may require different:

· punches;

· dies;

· V openings;

· radii;

· hemming tools;

· and special tools.

Automatic tool changers can significantly reduce setup.



TRUMPF’s ToolMaster, for example, automatically sets tooling for new programs, which is particularly relevant in small-batch production.



Panel Bender



Many modern panel benders reduce manual tooling changes through universal or automatically configured tooling.

Salvagnini explicitly describes its P4 universal tools as automatically adapting during production without manual retooling for the supported geometry range.

However:

"Panel benders never require tool changes"is not universally correct.

TRUMPF panel bending systems, for example, use automatic blankholder tool setup and optional auxiliary tools for specific geometries.

The correct comparison is:

Press brakes achieve flexibility through interchangeable tooling; panel benders often reduce manual tooling intervention through adaptive or automatic tooling.





7. Setup Time



Setup time is heavily application-dependent.



Press Brake Setup May Include



· retrieving tools;

· installing tools;

· aligning segments;

· changing V-die opening;

· configuring backgauge;

· loading programs;

· testing first parts;

· adjusting crowning;

· and correcting springback.

Automatic tool changing, offline programming and angle measurement can reduce this substantially.



Panel Bender Setup May Include



· loading program;

· selecting blankholder configuration;

· automatic tool setup;

· defining manipulator sequence;

· checking auxiliary tooling;

· and part feasibility confirmation.

Because the machine can often configure tooling automatically, panel bending can be particularly effective in frequent-changeover production.

This is why modern panel benders should not be described as machines only for mass production.

Salvagnini explicitly promotes batch-one and kit production using automatic adaptation of its universal tools.





8. Cycle Time



A claim such as:

"Panel benders are three times faster."

is not technically valid without a defined part and process.

A panel bender may achieve much shorter production time on a multi-sided panel because it eliminates:

· repeated manual rotation;

· repositioning;

· physical handling;

· and some tooling changes.



But a simple one-bend bracket may not gain the same advantage.

The correct metric is:

Total finished-part cycle time

not:

single-bend stroke time

When comparing machines, record:

· loading time;

· positioning time;

· bend time;

· rotation time;

· regripping time;

· tooling/setup time;

· unloading time;

· and changeover time.

Only then can productivity be compared correctly.





9. Accuracy and Compensation



Neither machine category has a universal accuracy advantage.



Press Brake Accuracy Depends On



· material thickness;

· tensile strength;

· grain direction;

· springback;

· V opening;

· tooling condition;

· Y1/Y2 synchronization;

· backgauge accuracy;

· crowning;

· and angle correction.



LVD’s Easy-Form Laser system, for example, is designed to measure and compensate for material variations during bending.



Panel Bender Accuracy Depends On



· blank accuracy;

· initial referencing;

· manipulator positioning;

· clamping;

· material variation;

· blade control;

· adaptive compensation;

· and geometry.



Salvagnini describes integrated adaptive systems that compensate for changes in material and production conditions.

Therefore:

Accuracy should be compared using representative-part FAT results—not isolated brochure numbers.





10. Surface Quality



Panel bending can be attractive for:

· stainless-steel doors;

· painted panels;

· appliance covers;

· elevator components;

· facade panels;

· and other appearance-sensitive parts.



TRUMPF currently describes its panel bending process as suitable for low-mark or mark-free processing in supported applications.

However, no machine should be assumed to be universally mark-free.

Surface results depend on:

· material condition;

· dirt;

· protective film;

· tool condition;

· contact pressure;

· bend radius;

· and part movement.



Press brakes can also protect surfaces through:

· coated tools;

· bending film;

· larger tool radii;

· polished tooling;

· and process optimization.





11. Labor and Operator Skill



Manual Press Brake



The operator may need to:

· support the sheet;

· position the flange;

· rotate the part;

· flip the part;

· change tooling;

· identify bend sequence;

· and respond to springback.

This can require significant skill, especially on complex parts.



Panel Bender



The machine assumes more of the:

· positioning;

· rotation;

· handling;

· sequencing;

· and repeatable movement.



Operator dependence is therefore often lower after the program and machine setup are validated.

However, labor does not disappear.

Skills move toward:

· programming;

· feasibility analysis;

· material flow;

· automation maintenance;

· and process engineering.





12. Automation Architecture



A common comparison mistake is to compare:

manual press brake

with

fully automatic panel bender.

That is not a fair technology comparison.

Modern press brakes can also use:

· automatic tool changers;

· robot loading;

· automatic unloading;

· angle measurement;

· offline programming;

· gripper changes;

· and flexible automated cells.



LVD’s RBS 40, for example, can combine several press brake types with robot handling and offline programming without machine-side robot teaching.

LVD’s larger RBS 80 extends robotic press brake automation to larger parts and longer profiles.

TRUMPF likewise offers fully automated press brake cells as well as panel bending systems.

The correct comparison is therefore:

Manual Press Brake vs Robotic Press Brake vs Panel Bender

not simply:

Manual vs Automatic.





Manual Press Brake vs Robotic Press Brake vs Panel Bender





A robotic press brake can close much of the labor gap while preserving the tooling flexibility of press braking.

But robotic feasibility introduces additional constraints:

· robot payload;

· gripper design;

· regripping;

· part sag;

· blank variation;

· collision clearance;

· and programming.

The correct automation strategy should therefore begin with the actual part family.





Material Thickness: Which Machine Has the Wider Range?



For material range, the press brake usually provides the broader application envelope.

A press brake can be built with much greater:

· force;

· working length;

· daylight;

· stroke;

· throat depth;

· and tooling capacity.



Panel-bender capability varies much more by architecture.

Current manufacturer data illustrates this clearly.



Example: Salvagnini P4



Published data for several P4 models includes:

· minimum thickness around 0.5 mm;

· steel up to approximately 3.2 mm at defined material strength and bend-angle conditions;

· stainless up to approximately 2.5 mm in some conditions;

· aluminium up to approximately 4 mm in some conditions.



Example: Prima Power BCe



Published values include:

· 3.0–3.2 mm steel;

· 2.0–2.2 mm stainless;

· 4.0 mm aluminium;

· minimum thickness 0.5 mm.



Example: ZYCO C-Series



ZYCO’s current published values for its C-series vary by machine and include:

· 1.5 mm cold plate;

· stainless from approximately 0.8 to 1.5 mm depending on model;

· aluminium from approximately 2 to 3 mm depending on model.

These differences prove an important purchasing rule:

Never buy a panel bender from a generic "maximum thickness" statement.

Ask for a complete table containing:

· material grade;

· tensile strength;

· thickness;

· bend angle;

· bend length;

· bend height;

· inside radius;

· and any limitations on special bends.





Which Part Geometries Are Best for a Panel Bender?



A panel bender should normally be evaluated first when the factory produces many parts such as:

· electrical cabinet panels;

· cabinet doors;

· elevator panels;

· appliance housings;

· HVAC panels;

· trays;

· shelves;

· facade components;

· equipment covers;

· shallow and medium-depth boxes;

· and repetitive multi-edge sheet-metal parts.



The common characteristic is not simply "thin sheet."

It is:

Multiple bends around a panel where automatic part positioning and rotation remove a large amount of manual handling.

A useful feasibility review should ask:

· How many edges are bent?

· How often is the part rotated?

· Are positive and negative bends required?

· What is the highest flange?

· Is there a return bend?

· Can the part rotate inside the machine?

· Does the manipulator have enough gripping area?

· Is the blank shape regular enough?

· Is the surface sensitive?

· Can the complete part be unloaded automatically?





Which Parts Are Better for a Press Brake?



A press brake is often the better starting point for:

· thick plate;

· high-strength materials;

· structural brackets;

· long profiles;

· short heavy components;

· irregular blanks;

· custom radius work;

· small special parts;

· parts requiring unusual punches;

· complex deep boxes;

· one-off fabrication;

· and subcontracting where future part geometry is unpredictable.

The reason is not simply higher force.

It is the combination of:

force + tooling freedom + open-ended part variety

This is why general fabrication shops frequently retain a press brake even after adding panel bending automation.

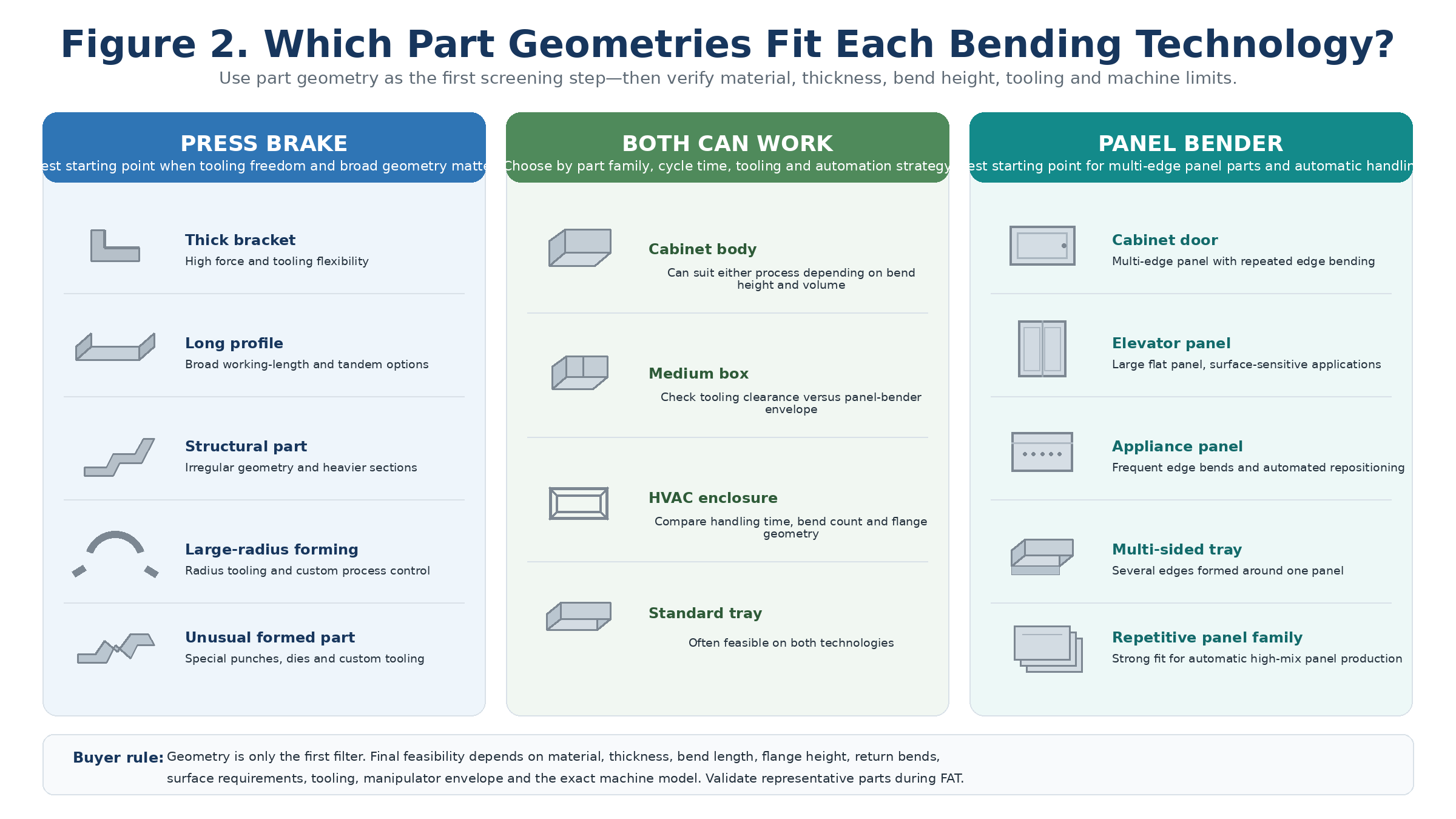

Figure 2. Typical part geometries that are better starting points for press brake, panel bender or both technologies.



Is a Panel Bender Always Faster Than a Press Brake?



No.

A panel bender can be dramatically faster on the right part.

It may eliminate:

· repeated operator repositioning;

· turning;

· lifting;

· checking;

· and manual tooling setup.

But a simple bracket may be produced faster on a press brake.

Cycle-time analysis should therefore use a real production component.



Measure



· program load;

· setup;

· material loading;

· first positioning;

· each bend;

· rotations;

· regripping;

· tool setup;

· unloading;

· inspection;

· and part changeover.

Then calculate:

Finished parts per hour

not merely:

bends per minute

This is especially important when automation is being used to justify a large capital investment.



Figure 3. Workflow comparison showing why handling between bends can dominate total finished-part cycle time.



Which Machine Is More Accurate?



There is no technically defensible universal answer.

A high-quality press brake with:

· accurate Y1/Y2 control;

· good tooling;

· CNC crowning;

· material compensation;

· and angle measurement



may produce extremely consistent components.

A high-quality panel bender with:

· accurate blank referencing;

· adaptive algorithms;

· stable clamping;

· precise blade control;

· and automatic manipulation

may also achieve highly consistent results.

The correct test is not:

Which brochure shows the smaller number?

The correct test is:

Which system produces my representative components repeatedly within the required tolerance?





Recommended Accuracy FAT



For either machine type, specify:

· exact material grade;

· material thickness tolerance;

· blank dimensions;

· inside radius;

· bend angles;

· flange dimensions;

· measurement method;

· sample quantity;

· ambient conditions if critical;

· and acceptance tolerance.



For example:

Produce 10 consecutive representative parts using the agreed production material and program, then measure critical flange dimensions and bend angles on every part.

This provides meaningful evidence.





Tooling and Changeover



Press Brake



Ask for:

· punch profiles;

· die openings;

· segmentation;

· tooling load;

· clamping system;

· tooling storage;

· tool identification;

· and changeover time.

If production is high-mix, automatic tooling may significantly affect ROI.



Panel Bender



Ask for:

· universal tooling range;

· blankholder setup;

· auxiliary tools;

· narrow-part capability;

· re-entrant bend tools;

· automatic setup;

· tool storage;

· and geometry limitations.



Do not accept:

"No tooling change required."

without defining the entire planned part family.





Labor and Operator Skill



Automation changes the type of labor rather than eliminating labor completely.



Manual Press Brake Labor



More labor is concentrated in:

· machine setup;

· workpiece support;

· rotation;

· gauging;

· sequence control;

· and physical handling.



Panel Bender Labor



More labor moves toward:

· programming;

· loading strategy;

· automation supervision;

· production planning;

· maintenance;

· and feasibility engineering.



Robotic Press Brake Labor



Adds:

· robot programming;

· gripper management;

· collision simulation;

· part-flow planning;

· and automation recovery.

Therefore the buyer should evaluate:

labor content per finished part

instead of only counting operators at the machine.





Production Volume: Low Volume, High Mix or Mass Production?



A traditional simplification is:

Press brake = small batch Panel bender = mass production

That is no longer accurate.

Modern panel benders can automatically adapt tooling and production programs to changing part geometries.

Salvagnini explicitly promotes batch-one and kit production on its P4 through automatic in-cycle tool adaptation.

Likewise, automatic tool-changing press brakes and offline-programmed robotic systems can support high-mix production effectively. LVD currently promotes vision-guided robotic systems intended to switch between parts in high-mix environments.

The more useful framework is:



Low Volume + Unpredictable Geometry

Press brake often has the advantage.



High Mix + Panel-Oriented Geometry

Panel bender can be highly competitive if setup and manipulation are automated.



High Volume + Repetitive Panel Geometry

Panel bender can offer very strong productivity.



High Volume + Robot-Friendly Complex Parts

Robotic press brake may be highly effective.

The part family determines the answer.





Panel Bender vs Press Brake Cost



Machine price alone is not enough.

A press brake may have:

· lower initial machine cost;

· higher manual handling;

· more tooling changes;

· more operator involvement.

A panel bender may have:

· higher automation investment;

· lower manual handling;

· reduced setup;

· fewer operator movements;

· different tooling economics.

A robotic press brake introduces:

· robot;

· grippers;

· safety cell;

· programming;

· loading/unloading;

· integration;

· and maintenance.

Therefore compare the complete production system.





Total Cost of Ownership



A useful simplified model is:

TCO = Machine Investment + Tooling + Labor + Setup + Energy + Maintenance + Software + Spare Parts + Scrap + Service + Financing − Productivity Gains

Do not calculate ROI from an assumed industry percentage.

Build the model from your own production.



Machine Investment



Include:

· machine;

· controller;

· automation;

· tooling;

· safety;

· shipping;

· installation;

· foundation;

· commissioning.



Labor



Calculate:

· operators per shift;

· loading labor;

· handling labor;

· tool-change labor;

· inspection labor;

· programming labor.



Tooling



Include:

· standard tools;

· special tools;

· automatic tool changer;

· tool storage;

· replacements.



Setup



Estimate:

· setups per day;

· minutes per setup;

· lost production during setup.



Maintenance



Include:

· hydraulics if applicable;

· servo systems;

· robot service;

· manipulator maintenance;

· tooling;

· lubricants;

· software support.



Scrap and Rework



Estimate costs caused by:

· first-piece correction;

· springback variation;

· scratches;

· setup error;

· wrong bend sequence;

· material variation.



Productivity



Use:

accepted finished parts per staffed production hour

rather than theoretical bends per hour.



Figure 4. Total cost of ownership framework for comparing press brake, robotic press brake and panel bender investments.



When Should You Choose a Press Brake?



A press brake should normally be the first machine evaluated when:

· material thickness varies widely;

· thick plate is common;

· future parts are unpredictable;

· custom tooling is frequently required;

· the factory is a general subcontract job shop;

· long or structural parts are common;

· one-off components are important;

· special radii or forms are required;

· part volumes do not justify integrated automation;

· or the machine must handle the broadest possible range of work.

A press brake is usually the more universal forming platform.





When Should You Choose a Panel Bender?



A panel bender should be evaluated seriously when:

· most components are sheet-metal panels;

· each component has several bends;

· workpieces require repeated rotation;

· operator handling is a major bottleneck;

· electrical cabinets or enclosures dominate production;

· appliance panels are common;

· elevator or HVAC panels are produced;

· surface appearance is important;

· frequent part changes occur;

· automatic handling is strategically important;

· or production must reduce dependence on skilled manual bending labor.

The justification should come from the part family—not from a generic productivity claim.





When Does a Factory Need Both?



For many mature sheet metal factories, the optimal answer is not either/or.

A complementary structure can be:



Panel Bender



Handles:

· suitable panel families;

· cabinets;

· doors;

· trays;

· enclosures;

· multi-edge thin-sheet work.



Press Brake



Handles:

· thick parts;

· long profiles;

· unusual components;

· special tooling;

· parts outside the panel-bender geometry envelope;

· unpredictable subcontract work.

This can improve utilization because each machine receives the jobs that best match its architecture.

A panel bender does not need to replace the press brake to justify its investment.

Likewise, the existence of a press brake does not mean the factory cannot benefit from panel bending.



Figure 5. Buyer decision tree for selecting a press brake, panel bender, robotic press brake or a combined strategy.



Application Selection Matrix





"Preferred Starting Point"does not mean automatic selection.

Every part still requires a feasibility review.





Press Brake vs Panel Bender RFQ Checklist



The RFQ should begin with the same workpiece data for both technologies.



A. Workpiece Data



· Material:

· Material grade:

· Tensile strength:

· Minimum thickness:

· Maximum thickness:

· Blank length:

· Blank width:

· Maximum diagonal:

· Maximum part weight:

· Number of bends:

· Bend direction:

· Inside radius:

· Minimum flange:

· Maximum flange:

· Maximum bend height:

· Return flanges:

· Re-entrant bends:

· Hemming:

· Surface protection required:

· Representative drawings attached:



B. Production Data



· Annual quantity:

· Typical batch size:

· Number of part families:

· Number of changeovers/day:

· Current operators:

· Current cycle time:

· Target finished parts/hour:

· Number of shifts:

· Required unattended operation:

· Planned future volume:





Press Brake RFQ Requirements



Ask the supplier to confirm:

· machine tonnage;

· working length;

· distance between frames;

· stroke;

· daylight;

· throat depth;

· Y1/Y2;

· X;

· R;

· Z1/Z2;

· other required axes;

· crowning;

· controller;

· angle measurement;

· tool clamping;

· punch/die package;

· minimum V opening;

· tooling load;

· sheet follower;

· front supports;

· automatic tool changer;

· robot compatibility;

· safety equipment.

Also request a bending study using the actual parts.





Panel Bender RFQ Requirements



Ask the supplier to confirm:

· maximum incoming blank length;

· maximum blank width;

· maximum rotatable diagonal;

· maximum bending length;

· maximum bending height;

· minimum part size;

· minimum flange;

· maximum return bend;

· re-entrant bend capability;

· positive/negative bending;

· material/thickness table;

· material-strength assumptions;

· bend-angle limits;

· minimum radius;

· manipulator design;

· blankholder configuration;

· universal tooling;

· auxiliary tools;

· narrow-part handling;

· loading automation;

· unloading automation;

· offline programming;

· surface-protection method;

· automatic tool setup;

· FAT methodology.

For every representative part, require a feasibility result.





Recommended FAT for a Panel Bender



A panel-bender FAT should not use only a simple rectangular tray.

Select multiple representative components.

Include:



Part 1 — Maximum Size



Tests:

· manipulator envelope;

· rotation;

· positioning;

· loading/unloading.



Part 2 — Maximum Bend Height



Tests:

· clearance;

· blankholder;

· collision;

· unloading.



Part 3 — Smallest Production Part



Tests:

· gripping;

· minimum geometry;

· positioning.



Part 4 — Complex Part



Include:

· positive bend;

· negative bend;

· return flange;

· several sides.



Part 5 — Surface-Sensitive Part



Tests:

· scratches;

· tool marks;

· protective film.

Measure:

· cycle time;

· bend angle;

· flange dimension;

· repeatability;

· setup time;

· and changeover time.





Recommended FAT for a Press Brake



Use representative components that test:

· maximum thickness;

· maximum actual bend length;

· smallest flange;

· deepest box;

· multiple bend sequence;

· special tooling;

· crowning;

· backgauge;

· and angle compensation.

The FAT should confirm actual production capability—not merely machine motion.





Frequently Asked Questions



What is the main difference between a panel bender and a press brake?



A press brake normally bends sheet metal between a punch and die, while a panel bender clamps the sheet and forms its edges using controlled bending blades.

A press brake obtains much of its flexibility from interchangeable tooling. A panel bender obtains much of its productivity from automatic part handling and integrated bending automation.





Is a panel bender faster than a press brake?



It can be much faster for suitable multi-sided panel components because it reduces manual positioning, rotation and handling.

However, it is not universally faster.

Simple parts may be produced very efficiently on a press brake.

Compare total finished-part cycle time using real parts.





Can a panel bender replace a press brake?



Not in every factory.

Panel benders are particularly effective for panel-oriented sheet-metal components, but press brakes generally offer a broader range for thick material, long parts, custom tooling and irregular geometry.

Many factories can benefit from owning both.





What thickness can a panel bender bend?



There is no universal thickness.

Current commercial machines vary significantly.

Examples include machines around the 3 mm-class steel range, but capacity depends on:

· material strength;

· model;

· bend angle;

· bend length;

· geometry;

· and tooling.

Always use the manufacturer’s material-specific thickness table.





Can a panel bender produce small batches?



Yes.

Modern panel benders with automatic tool adaptation and software-driven setup can be highly effective in high-mix, small-batch or even batch-one production.

Salvagnini specifically documents batch-one and kit production capability on the P4.





Which machine is better for electrical cabinets?



Panel benders are often well suited to electrical cabinets and enclosure panels because these parts commonly require several bends around a sheet and repeated repositioning.

However, the buyer must verify:

· bend height;

· return flanges;

· box depth;

· blank size;

· material thickness;

· and special geometry.

A press brake may still be required for cabinet frames, thick brackets and special components.





Which machine is better for thick plate?



A press brake is normally the better choice.

Press brakes are available in much higher force ranges and can accommodate heavy tooling and thick-plate applications more easily.





Does a panel bender require tooling changes?



Many panel benders significantly reduce manual tooling changes through universal or automatically configured tools.

However, special geometries may still require:

· auxiliary bending tools;

· additional blankholders;

· or automatic tooling setup.

Therefore “no tool change” should not be assumed for every part.





Which machine requires less labor?



A panel bender often reduces manual part handling significantly because positioning and rotation are integrated.

A robotic press brake can also reduce labor substantially.

The correct comparison should calculate:

labor hours per accepted finished part

rather than simply counting operators standing at the machine.





Is a robotic press brake better than a panel bender?



Neither is universally better.

A robotic press brake preserves the broad tooling flexibility of a press brake while automating handling.

A panel bender integrates part manipulation directly into the bending architecture.

Robot feasibility depends on:

· part size;

· weight;

· gripper;

· regripping;

· geometry;

· and production mix.



Panel-bender feasibility depends on:

· panel envelope;

· flange height;

· rotation;

· clamping;

· and geometry.





Which machine has better bending accuracy?



There is no universal answer.

Both technologies can achieve high accuracy when correctly specified.

Accuracy should be validated using representative production parts under agreed FAT conditions.





Should a sheet metal factory own both?



For mixed production, this can be a strong strategy.

The panel bender can process suitable panel families efficiently, while the press brake handles thick, long, irregular or special-tooling work.

The correct decision depends on workload distribution and utilization.





Conclusion



The difference between a panel bender and a press brake is deeper than speed, automation or machine price.

They represent two different bending architectures.

A press brake is built around:

force + tooling + CNC axes + process flexibility

A panel bender is built around:

clamping + integrated manipulation + automatic bending + reduced handling

A press brake normally provides the broader application range, especially for:

· thick material;

· long components;

· unusual geometry;

· custom tooling;

· and unpredictable production.

A panel bender becomes particularly attractive when production is dominated by:

· multi-sided panels;

· cabinets;

· doors;

· enclosures;

· appliances;

· HVAC parts;

· elevator components;

· and other sheet-metal parts where repeated positioning and rotation consume significant labor and cycle time.

The correct purchasing decision should therefore follow this sequence:

7. classify the real part family;

8. define material and thickness;

9. measure bend lengths and flange heights;

10. identify difficult return bends and geometry;

11. calculate production volume and changeovers;

12. compare manual handling time;

13. evaluate tooling and automation;

14. perform feasibility studies;

15. test representative components during FAT;

16. calculate lifecycle cost.

The right bending technology is determined by the part family and production strategy—not by the machine category alone.

For many advanced sheet metal factories, the strongest conclusion may be neither:

Press brake instead of panel bender

nor:

Panel bender instead of press brake

but:

Use each technology for the part families it produces most efficiently.
