Why are grooving machines indispensable for high-end sheet metal processing?

In the sheet metal industry, equipment configuration often determines product positioning. If bending machines are the "basic equipment" in sheet metal forming, then grooving machines are the "key process" that allows products to go from ordinary to high-end.

As industries such as architectural decoration, elevator panels, high-end furniture, and stainless steel products place increasingly higher demands on product appearance and bending precision, grooving machines have gradually transformed from optional equipment into standard equipment for high-end sheet metal processing companies.

1. What is grooving? Why is it so important?

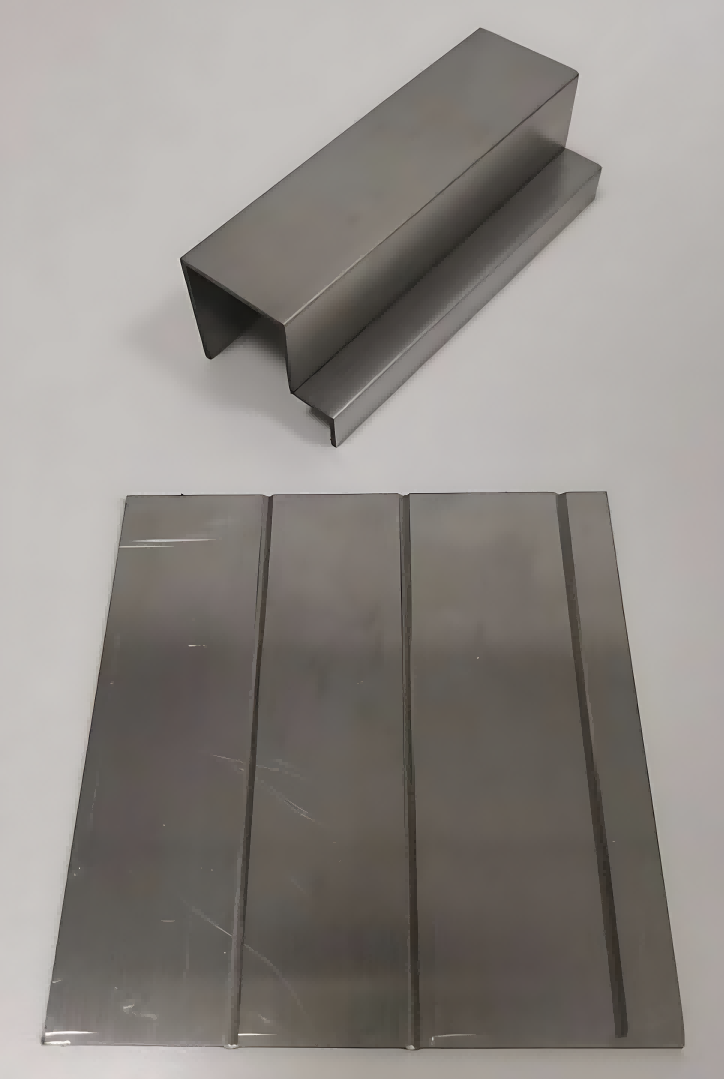

Grooving (V-groove machining) is a process in which a U-shaped or V-shaped groove is cut into a specified bending line using a cutting tool before bending a sheet material.

Its core functions are threefold:

1) Reduce bending springback and improve angular accuracy

2) Achieve an extremely small inner radius angle in the bend, creating a sharper zigzag effect.

3) Ensure the bent surface is free of indentations and deformation, achieving a high-end visual effect.

In other words, grooving is not for making bending easier, but for making bending more advanced.

2. Which products must rely on the grooving process?

Grooving machines are used in almost all industries that have strict requirements for "lines, angles, and textures," for example:

If the product falls into any of the above categories, bending machines alone cannot achieve the desired results; grooving processing must be used in conjunction with bending.

3. What traditional processing problems does the grooving machine solve?

✅ Solving the problem of bending springback

Especially with 304 stainless steel and aluminum sheets, the springback is significant, making it difficult to form in one go using compensation methods. Grooving can improve the stability of the bending angle by 30%-50%.

✅ Avoid bending marks and surface damage

High-end mirror panels, titanium plates, and brushed steel plates are most susceptible to indentation when bent; after grooving, they can be formed with almost no protective film.

✅ Achieving small R angles or even "right-angle bends"

In ordinary bending, the radius (R) angle is at least equal to the thickness of the plate, while grooving can reduce the inner radius angle of the bend to about 0.2mm, resulting in a more refined visual effect.

✅ Reduce welding processes and improve appearance consistency

Many structures that originally required welding and grinding can now be formed in one step by grooving and bending, resulting in greater strength and a better appearance.

4. Why are high-end customers paying more and more attention to grooving?

✅ Higher product premium —— Improved appearance = Increased brand value

✅ Reduce rework rate —— higher first-time molding pass rate for exterior parts.

✅ Stronger process expansion capabilities —— Can accept higher profit orders.

✅ Replacing some laser welding/splicing processes —— with more controllable costs.

In short: Grooving machines can directly affect whether a company can accept high-end orders and sell at higher prices.

5. What should you pay attention to when choosing a grooving machine?

1) Is the countertop structure thickened, and how stable is it?

2) Are the tool precision and adjustable angle range sufficient?

3) Does the control system support automatic compensation and margin control?

4) Does it support long/thick plate processing (e.g., 6 meters, 8 meters)?

5) Can the equipment meet the requirement of not scratching the mirror panel?

In practical use, a grooving machine with unstable precision not only cannot help, but may even slow down the production pace and increase rework costs.

6. ZYCO's grooving solutions

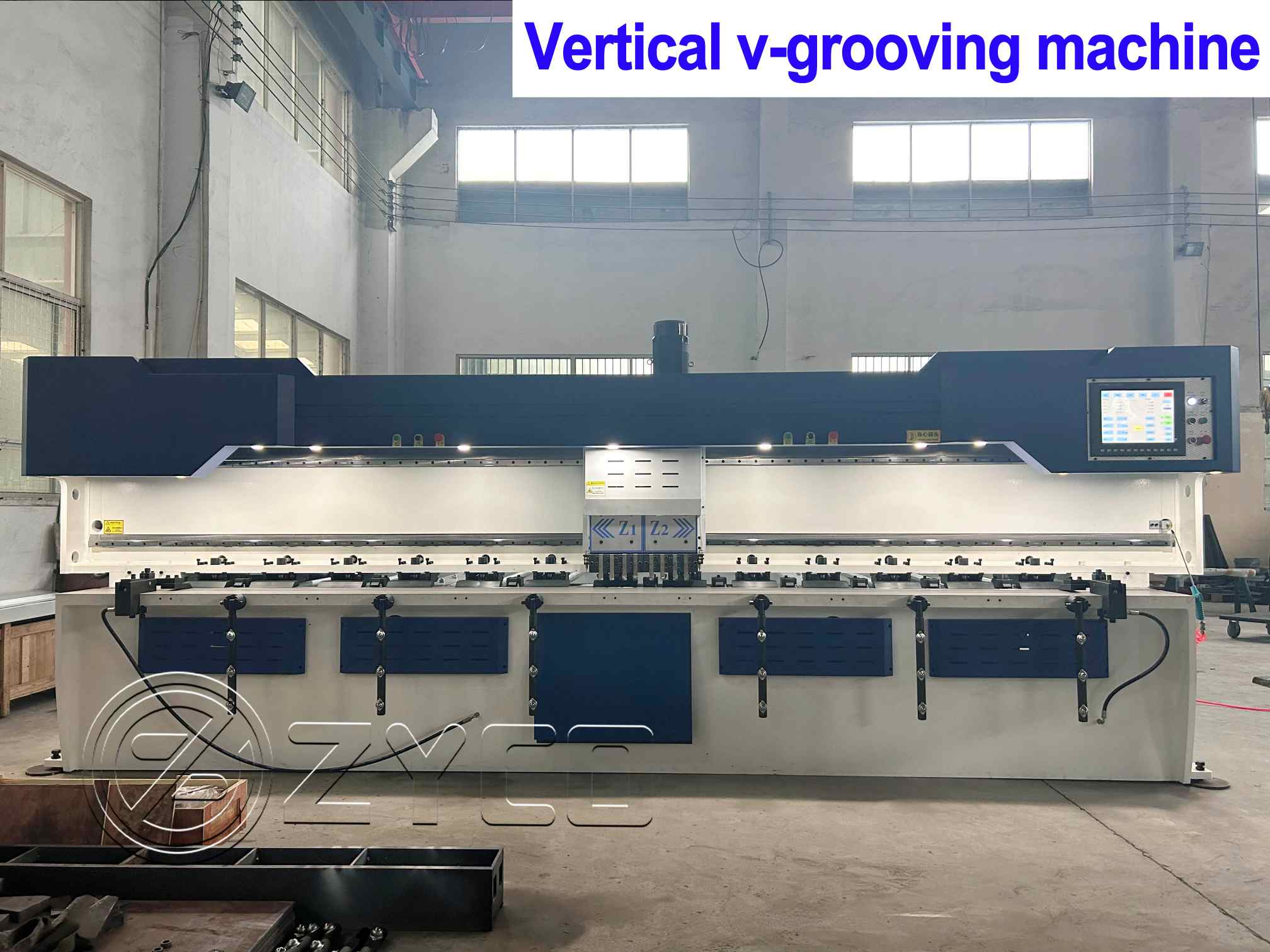

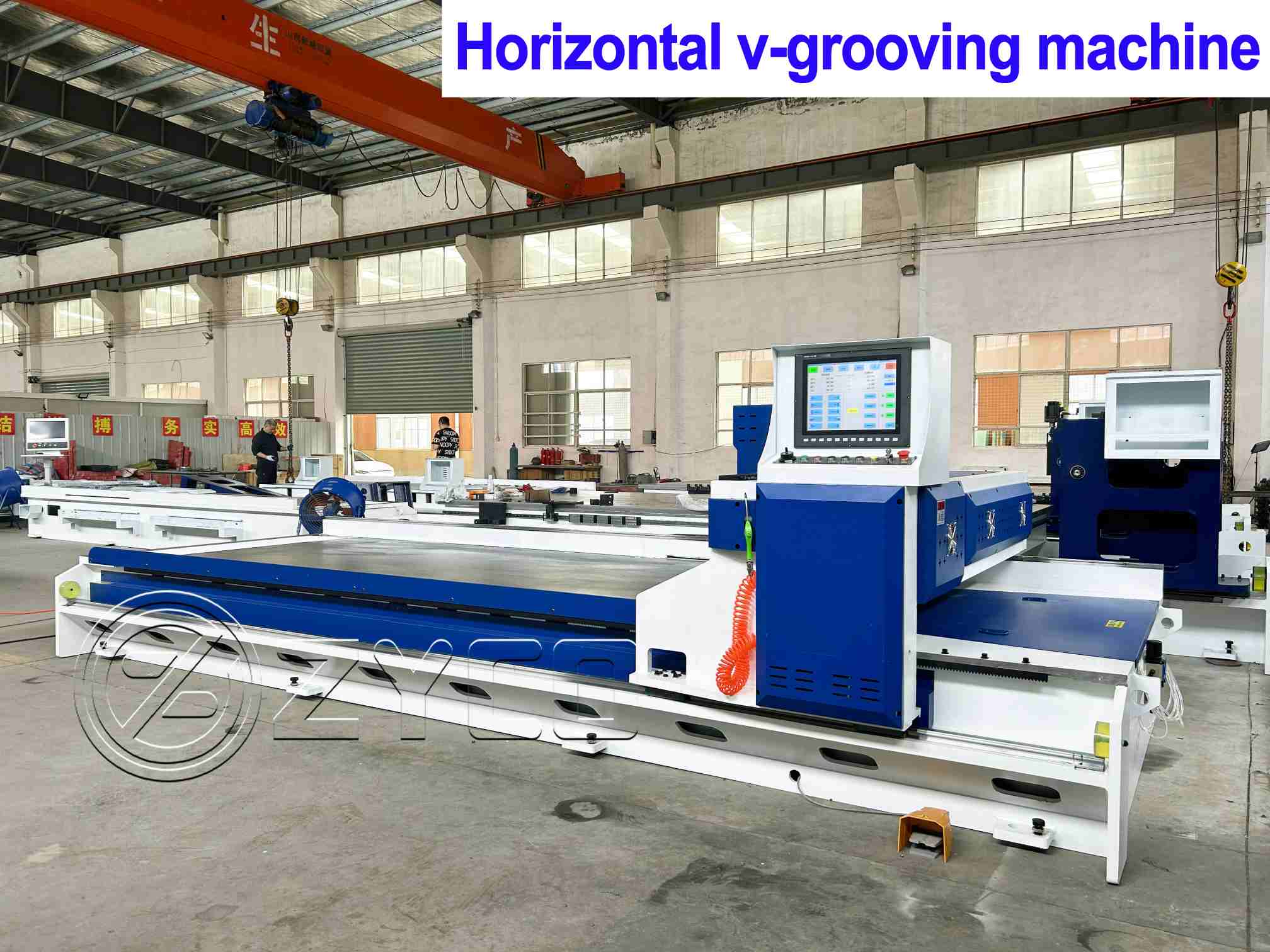

As a sheet metal processing equipment manufacturer, ZYCO offers a full range of vertical and horizontal grooving machines, covering various industry scenarios such as decorative panels, elevator panels, and large curtain wall panels, and possesses the following advantages:

✅ The high-rigidity gantry structure ensures no deformation during long plate processing.

✅ The tool angle precision control system ensures high consistency in bending angles.

✅ Supports processing of extra-long boards up to 8000mm.

✅ Automatic line marking and positioning, intelligent compensation technology

✅ Compatible with high-end surface materials such as mirror panels and titanium plates.

In addition, we provide our clients with free process evaluation and trial cutting services to help them confirm the grooving effect before making a purchase decision.
